Waterproof Outdoor P10 RGB LED Video Wall SMD3528 With UL ISO2001 Approve

Quick details

We really cherish the business relationship with all customers. And provide our best to service every potential customer.

The effect of the outdoor led display is perfect. If you can give us one choice to cooperate with you You will gain a good business partner forever.

Product Features

1. Eliminate color spots or picture shadows through the adjustment of brightness and color by each individual pixel

2. Adopting self-developed steel structure and special kit to maintain good flatness and smoothness.

3. Passes the strict waterproof test of Ip65.

4. Adjust the brightness automatically according to the environment changes, saving energy.

5. Adopting special PVC kit to prevent corrosion in coastal weather

6. Adjust the brightness automatically according to the environment changes, saving energy

7. Automatic on/off switch, can work unattended.

configure	Specification	Parameter
Pixel	Dot Pitch	10mm
	Pixel Configure	1R1G1B
	Pixel/SQM	10000Pixel/m²
LED Lamp	LED TYPE	smd3535
	Chip Brand	EPISTAR
	Wavelength & Brightness	Red:620-622.5nm;>300mcdGreen:520-522.5nm;>600mcdBlue:465-467.5nm;>110mcd
Module	Module Resolution	32Pixel * 16Pixel
	Drive Mode	Constant Current Drive
	Scanning Method	1/4 Scanning
	Module Dimension	160mm(Width)x160mm(Height)
	Drive IC	MBI5024(Or other Similar IC)
	LED & Drive Composition	Light-Drive Combo
	Refresh Rate	>1500HZ
Cabinet	Cabinet Thickness	150mm
	Cabinet Construction	Normal Standard Cabinet
	Cabinet Assembly	Connecting Sheet
	Cabinet Color(Front/Back)	Black,Grey
	Aviation Plug	wp20
	Maintenance Mode	Back Maintenance
	Cabinet Material	Spcc1.5
	Cabinet Dimension	1024X1024X150mm
	Power Supply	China Power Supply
LED Screen	Viewing Angle	Horizontal : 120 ° Vertical: 120 °
	Brightness	>6000cd/m²
	Best Viewing Distance	10~25m
	LED Life	100,000Hours
	Maximum Power	800w/m²
	Average Power	350w/m²
	Input Voltage	220V±10% Or 110V±10%
	Operation Environment	Temperature: —20°C~60°C; Humidity: 10%~95%
	Protection Grade	IP65
	LED Screen Weight	55kg/m2

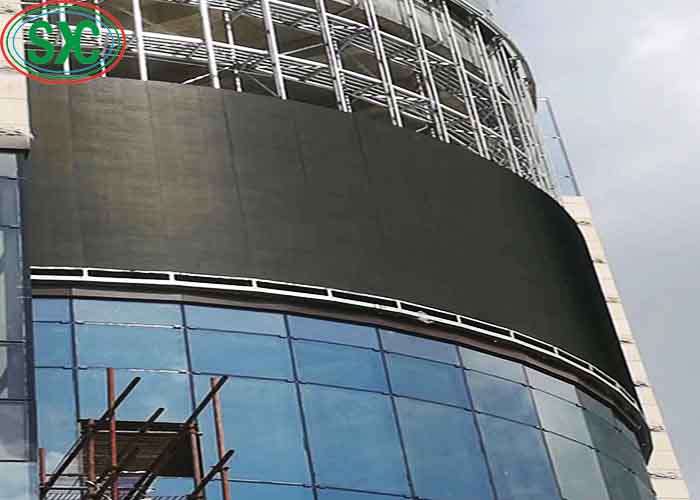

Project case for customers

Competitive advantage

1.Standard waterproof cabinet design, easy to install and use.
2.3 years warranty, more than 10 years service life, provide 3% spare parts.
3. good heat dissipation design, strict quality testing, 72 hours aging test.
4.It can play all kinds of videos, pictures and texts, applicable to all kinds of occasions.

Just feel free to contact us for more business information.Our engineers will be always here to service you!
