    High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : SCXK-P6
    Certification : CE,ROHS ,FCC,UL
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size

    SMD3535 Full color water-proof iron and steel cabinet fixing usage LED Billboards3 years warranty.


    Quick details


    1.Application

    Widely use in stadiums, advertisement, banks, securities exchange, stations,

    shopping malls, postal offices, schools, restaurants, entertainment, enterprises ,highway etc


    2.Market:


    North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe


    specification.


    LED LampsTypeSMD3535(High Brightness LEDs)
    LED StandardReal Pixel(1R1G1B)
    Red Wavelength625-630nm
    Green Wavelength515-530nm
    Blue Wavelength465-475nm
    LED ModulePixel Pitch6mm
    Module Size192mm x192mm
    Module Resolution32*32dots
    LED CabinetCabinet Size960mmX960mm
    Cabinet Resolution160pixels *160pixels
    Cabinets MaterialSealed Iron Cabinet
    LED DisplayPixel Density27777pixels/sq.m
    Drive ICMBI5124
    Power SupplySeries connection
    Brightness>8000cd/sqm
    Display Color16.7million
    Viewing Angle160°(Horizontal),110°(Vertical)
    Best Viewing Distance6m~200m
    Max Power Consumption600 w/sq.m
    Average Power Consumption300 w/sq.m
    Weight40kgs/sq.m
    Refresh Rate2000hz
    Input VoltageAC220V/50H or AC110V/60H
    Output VoltageDC5V,40A
    Grey Scale Levels16bit
    Display ColorsR(1024) x G(1024) x B(1024)
    Life-span100,000 hours
    Protection LevelIP65
    Failure percentage of ledsless than 0.0003
    Working Temperature-25℃~65℃
    Drive Mode1/8
    Working Humidity10%~99%

    High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size


    the outdoor full color led display module ( smd and dip are available)
    NumberDrive modeModuel sizeResolutionLed standardpixel density
    P41/8 scan256x128mm64x323in162500
    p4.811/13scan250x250mm52x523in143222
    p51/8 scan160x160mm32x323in140000
    P61/8 scan192x192mm32x323in127778
    P81/4scan256x128mm32x163in115625
    P101/4scan160x160mm16x163in110000
    P121/4scan192x192mm16x163in16944
    P16static scan256x256mm16x163in13906
    P20static scan320x160mm16x83in12500
    P25static scan200x200mm8x83in11600
    P31.25static scan250x250mm8x83in11024
    the indoor full color led display module( indoor usage only)
    Numberdrive modemodule sizeresolutionled standardpixel density
    p1.9231/32scan246x246mm128x1283 in 1270420
    p21/32scan128x64mm64x323 in 1250000
    p2.51/16scan160x160mm64x643 in 1160000
    p31/16scan192x192mm64x643 in 1111111
    p3.911/16scan250x250mm64x643 in 165410
    p41/16scan256x128mm64x323 in 162500
    p51/16/scan320x160mm64x323 in 140000
    p61/16scan384x192mm64x323 in 127778
    p7.621/8 scan244x244mm32x163 in 117222

    Competitive advantage


    (1)Adequacy: With the specific equipment, spare parts allocation adequate, ensure replacement in the first time of equipment failure;


    (2)Necessity: On the basis of previous maintenance experience, we configure the spare parts are the key parts of the equipment,

    so as to ensure the economic allocation;


    (3)Economic practicality: In order to deal with the fault in the shortest time, we configure the spare parts are complete module or unit,

    through our training, the owners can easily replace the spare parts, so as to ensure the normal operation of the system.

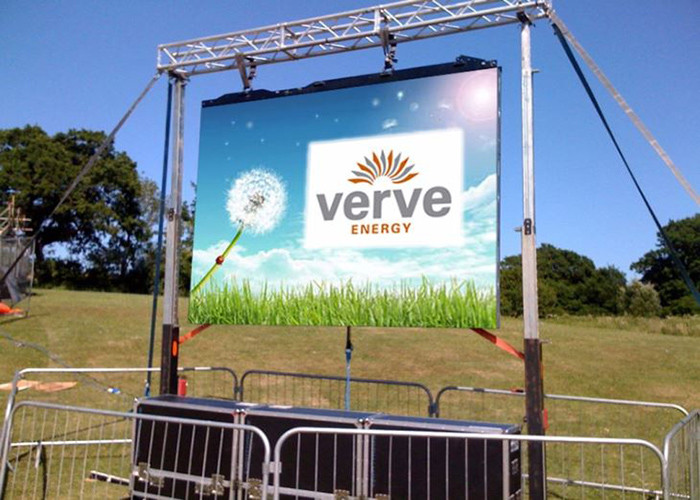

    Project case as follows:

    High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
