Sports arena events field outdoor P10 die-casting aluminum led
display boards screen
Parameter specification:
| model | P10 |
| Pixel unit module | Pixel pitch(mm) | 10 |
| Pixel density (dots/sqm) | 10000 |
| LED type | SMD |

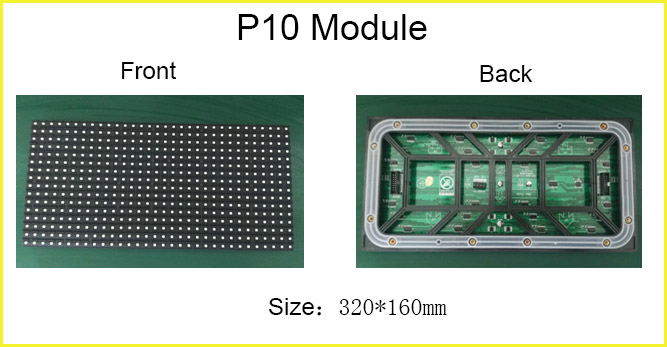

| Module size(mm) | W320×H160 |
| Pixel composing | RGB full color |
| Pixel unit screen | screen size(mm) | 960*960mm |
| module Resolution (nits) | 32*16 |
| Cabinet structure | Water-proof |
| installation | fixed on the back |
| screen material | magnesium alloy |
| Protect degree | IP65 front ,IP54 rear |
| Viewing distance(m) | 10~100m |
| Brightness(cd/sqm) | 7000 cd/sqm or 7000 nits or more |
| Power consumption (w/sqm) | Max 900W/sqm ,can be custom make 500W max |
| Driving IC | 1/4 scan MBI Brand Driver |
| Refresh rate(HZ) | ≥2000- 3000 |
| Viewing angel(c) | H120 V110 |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration
coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen,
edge smooth, color space transformation and control, coordinate
transformation of grey scale, etc |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the
brightest pixel luminance than more than 0.9 |
| Gray | 65536 |
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the
software level 100 adjustable, color temperature can be adjusted
according to need |
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100
meters, the biggest up to 140 m. Multimode fiber of up to 500
meters, the single-mode optical fiber to 20 kilometers |
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION |
| Control System | PCTV non-liner editing card+DVI display card+main control
card+optic fiber transmission(Optional) or video dealer |
| Average No Failure Time | 20000 hours |
| Life span | 100,000 hours |
| Out-of Control rate | 0.0001 |
| To floor drain current | Less than 3.5MA |
| Control system | Synchronized |
| Operating Environment Temperature | -20°C—65°C Optional |
Product item
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)}
outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led
module/display.
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Order Procedure
Negotiation—First solution recommended—Finalize all the details—30%
deposit in advance
or full deposit—Start production—Pay the balance—Shipment by sea or
express—Provide tracking information—Feedback.
Buying Guides
In order to offer you a suitable solution, please follow the guides
bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
