RGB Led Display Product Description
1) High refresh rate , high brightness and high contrast which make
the screen without any delay and smear phenomenon under directly
sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped
with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing
environment
4)Wide viewing angle: The horizontal and vertical viewing angles
are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat
dissipation, cost-effective .
RGB Led Display Pamameter
| Module Parameters |
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| Density | 160000 pixels/sqm |
| LED Lamp | SMD2121 |
| Module Size | 160*160mm |
| Module Resolution | (W)64Pixels * (H)64Pixels |
| Working Voltage | DC5V |
| Scan Mode | 1/32 Scan |
| Drive IC | MBI5124(Can be customized) |
| Port Type | HUB75 |
| Screen Parameters |
| Cabinet Size | (W)480*(H)480mm |
| Cabinet Material | Die-casting aluminum |
| Cabinet Weight | 5.76KG |
| Cabinet Resolution | 192*192 Pixels |
| Module Qty | 9pcs |
| Power Supply | 200W |
| Working Voltage | AC220V±10% |
| Max Power Consumption | 600W/sqm |
| Ave Power Consumption | 200W/sqm |
| Brightness | 800 Nits |
| Refresh Rate | 1920Hz/ 3840Hz |
| Frame Frequency | 60Hz |
| Grey Scale | 14 bit |
| Brightness Level | 256 levels |
| Best View Distance | 2.5M-50M |
| View Angle | 120°(Horizontal); 120°(Vertical) |
| Protection Degree | IP30 |
| Working Temperature | -20℃ ~ +60℃ |
| Relative Humidity | 10%-95% |
| Operation system | WIN7/WIN8 |
| Control Method | Synchronous or Asynchronous |
| Control System | NovaStar |
| Receiving Card | MRV336 |
| Control Distance | 100M(Ethernet cable); 20KM(Optical fiber cable) |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Out-of-Control Pixel Rate | ≤0.01% |

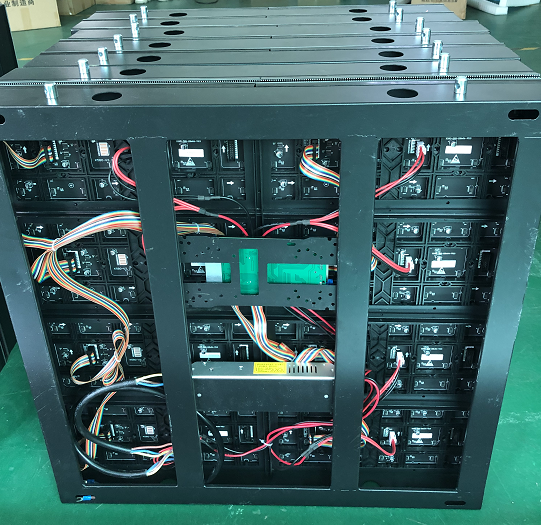

RGB Led Display Detailed Picture
RGB LED Display Project
Our Service
1)Your inquiry related to our products or price will be replied in
24hrs
2)OEM&ODM,any your customized lightings we can help you to
design and put into product
3)Distributoership are offered for your unique design and some our
current models
4)Protection of your sales area,ideas of design and all your
private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful
& Win
Trade Terms
1.Payment:T/T,30% deposits before production,70% balance to be paid
before dleiverying
2.Shipping freight are quoted under your requests
3.Shipping port:ShenZhen,Mainland China
4.MOQ: 1sqm
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. For
designing or further discussion, it is better to contact us with
Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/
Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have
stock, can delivery within 7 days.
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led
module, receiving card, control card, power supply are damaged not
cause of artificial damaged, then it's free maintenance and ship
back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before
shipping, from purchase raw materials to ship ,Each step has strict
quality control systems to ensure led display with good quality.
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to
set up screens, make configuration of parameters, broadcast the
videos through Nova star and colorlight or Linsn control systems,
our engineer can directly teach you how to control, or help you to
done if you are really don't know how to control(Our Engineer can
text English, we can saving more time )
We're devoted to innovative high-end led display with over 15 years
manufacturing experience, and we believe you could get a
professional solution and best service from REISS. We're happy to
serve you.
If you need led display screen,welcome to contact us,we can
customize according to your needs.
For more questions about ShiXin Display Technology wholesale price full color smd outdoor/indoor led video display
screen fixed with iron cabinet , please contact me of ShiXin Display Technology direct OEM manufacturer right now! Welcome any question!
