High Brightness P10 Catwalk Stage Interactive Dance Floor 1/4 Scan
Led floor tile screen feature introduced:
1.Modular structure, seamless stitching.
2.The most simple design, easy accessibility and maintenance,
high strength wear-resistant non-slip fabric, direct depressing.
3.Closer-type closed cooling structure, IP65 unique spot spray
treatment,
the complete elimination of Moire phenomenon.
4.13bit gray processing, high brightness, clear picture, vivid, use
SMD technology
watching effect is good, display mode is diverse (graphics, text,
animation, TV pictures, etc.)
5.Using VGA synchronization technology, the screen content
synchronization with the computer,
replace the display content is more simple and convenient.
6.Support multi-window flexible player software and interactive
software.
7.Bearing: one cabinet can carry 1300kg, per square can carry 2.5
tons of load,
safety factor up to 3 times.
parameter specification:
| LED Lamps | Type | SMD3535(High Brightness LEDs) |
| LED Standard | Real Pixel(1R1G1B) |
| Red Wavelength | 619-623nm |
| Green Wavelength | 524-527nm |
| Blue Wavelength | 467-470nm |
| LED Module | Pixel Pitch | 10mm |
| Module Size | 320mm x320mm |
| Module Resolution | 32*32dots |
| LED Cabinet | Cabinet Size | 960mmX960mm |
| Cabinet Resolution | 96pixels *96pixels |
| Cabinet material | iron steel cabinet |
| LED Display | Pixel Density | 10000pixels/sq.m |
| Drive IC | MBI5024 |
| Power Supply | Series connection |
| Brightness | 1600-3000cd/sqm |
| Display Color | 16.7million |
| Viewing Angle | 120°(Horizontal),120°(Vertical) |
| Best Viewing Distance | ≥10m |
| Max Power Consumption | 500 w/sq.m |
| Average Power Consumption | | | 170 w/sq.m |
| Frame frequency | ≥120Hz |
| Refresh Rate | ≥540Hz |
| Input Voltage | AC220V/50H or AC110V/60H |
| Output Voltage | DC5V,40A |
| Grey Scale Levels | 16bit |
| Display Colors | R(1024) x G(1024) x B(1024) |
| MTBF | 10,000 hours |
| Life-span | 100,000 hours |
| Protection Level | IP65 |
| Failure percentage of leds | | | less than 0.0003 |
| Working humidity | 10%～90%RH |
| Working temperature | -20℃~40℃ |
| Drive Mode | 1/4 scaning Constant current |
| Earth leakage | <2mA |
| Control System | Control method | Synchronization & Asynchronization |
| Control System | (software) LINSN |
| Software | LED Studio LINSN |
| Graphics card | DVI |
| Edit card | PCTV |
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc |
| Operating system | Microsoft Windows 7, 98, 2000, XP and Vista |

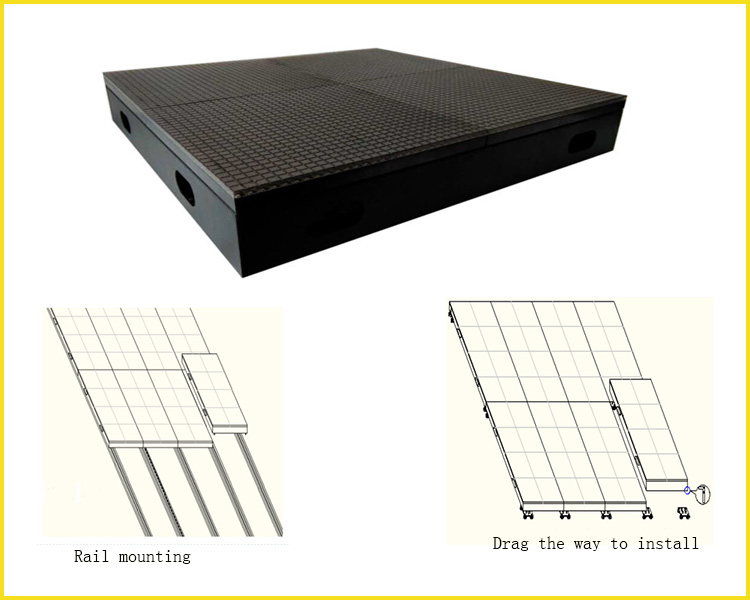

Cabinet and installation method
Module Process
Product item
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)}
outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led
module/display.
Company profile
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Buying Guides
In order to offer you a suitable solution, please follow the guides
bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
