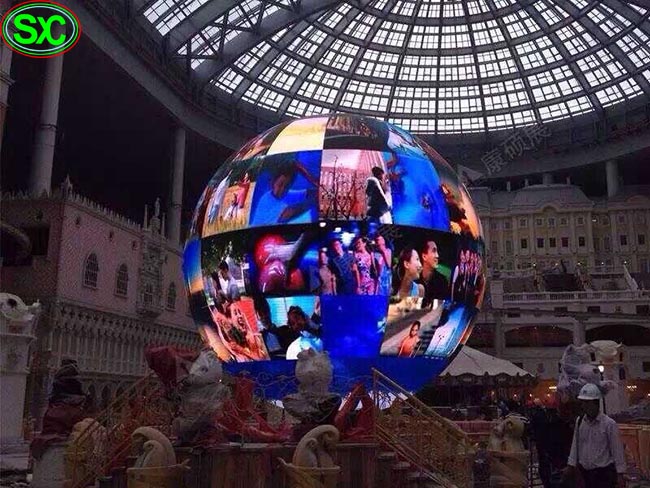

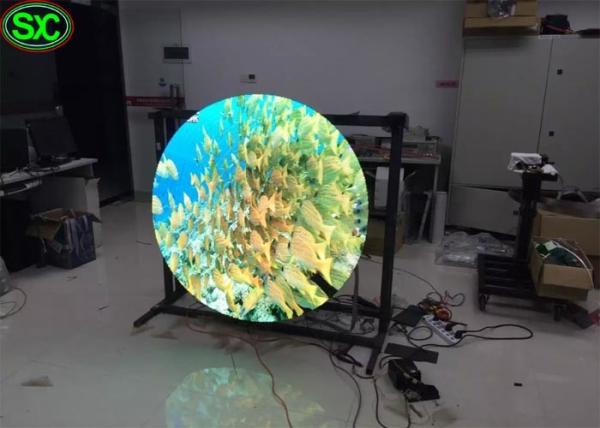

360 Degree Advertising Rgb Led Display P5 , Sphere Led Video Ball
Screen
♦ Features of LED Ball Screen full color 360 sphere P5 led display:
1. Customized:Can be customized required as any sizes and any pixel
pitches.
2. Application:For indoor.
3. Installation:Support hanging installation, stand on ground or
mobile using.
4. Viewing angle:Perfect viewing angle with 360 degree.
5. Controlling:Both synchronous and asynchronous control way is
available for LED balls.
6.Effect:The creative appearance and wonderful showing effect
attracts most attention during the usage.
7. Structure:Aluminum material structure which lighter weighs and
better for heat dissipation.
8. Design:Special PCB design which can make sure the showing
picture distortionless.
9. Maintain:Support front and rear maintenance.
♦ Product specification
| indoor SMD P5 |
| Lamp size | 2121 |
| Resolution/mm | 5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 40000/m² |
| Module resolution | 64*32 |
| Module size/mm | 320*160 |
| View distance | ≥0.5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
♦ Product Overviews
| Items | Indoor Led display:
p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
