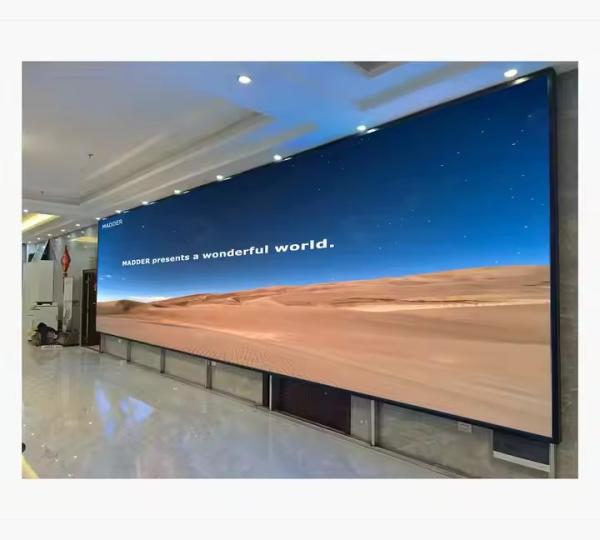

Big Outdoor Full Color Led Display Board , P20 Lightweight Led
Screen Panel
Features
1. lightweight, standardized cabinet structure: the use of
high-strength metal technology to achieve high precision,
lightweight and other outstanding features; image uniformity, high
brightness
2. Refresh frequency and gray level achieve realistic effect.
3. High load-bearing strength, quick installation by connecting
plate. Flexible mounting methods, such as embedded and column
mounting, will not cause extrusion and deformation.
4. No extrusion and deformation between modules when the display is
working under high and low temperatures.
5. low heat generation, low noise, low radiation: through good
structural design, ensure low decibel value and stable performance
when working at room temperature; pass EMC test.
6. 6. High-voltage hot-plugging application: no fire will occur
during plugging and unplugging, fully realizing the phenomena of
waterproof, anti-interference and corrosion resistance.

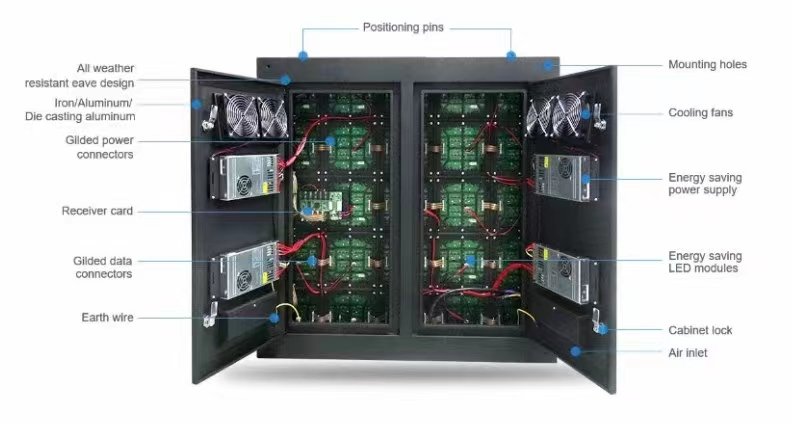

7. Module box is equipped with installation and maintenance
handles, non-reflective mask, UV resistance, 5 years without
fading. Contrast ratio up to 1000:1, box flatness coefficient less
than 0.5mm, factory power up to 88% or more.
8. The application of double backup data and fiber optic system
ensures efficient, stable and safe operation of the screen.
Reasonable configuration of the light sensor, so that the display
is always in the best working condition, and automatically adjust
the screen brightness according to changes in the external
environment.
Specifications :
| outdoor DIP P25 |
| Resolution/mm | 25 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 1600/m² |
| Module resolution | 8x8 |
| Module size/mm | 200x200MM |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Payment terms:
T/T in advance, 30% deposit and the balance 70% will be paid before
shipment.
Delivery time:15-20days
Warranty time: 3 year,offer the free spare parts(module & power
supply) in advance.After guarantee term,still supply spare parts
with charging only materials cost.
Packing:Standard wooden case packing free,flight case packing
FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support
cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/
PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed
samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after -
sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit.
The specific delivery time depends on the items and the quantity of
your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system
problem, how to use the screen…don’t worry, we have professional
after-sale team to solve your any questions after you placed an
order. And your exclusive sales engineer will also help you get
over any problems.
