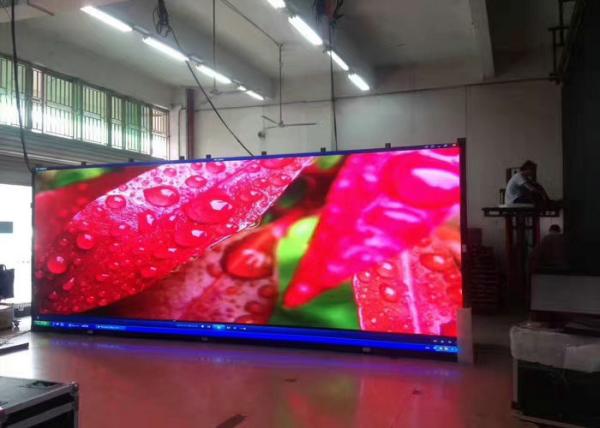

5mm Indoor Led Screen , P5 SMD Led Display Indoor RGB Full Color
Concept of LED Display :
LED is the abbreviation for light emitting diode. LEDs are arrayed
breadthwise and lengthways with stable pitch that form LED
matric-LED Display Screen. Each LED of the LED Display has a
corresponding luminance control circuit. A computer controls the
circuit, the circuit influence the brightness of each LED, then
form the picture or letters we desire in the led display screen.
Feature:
1. The box is thin and light, and the screen can be quickly built
in a short time.
2. The die-cast aluminum one-piece molding technology is adopted,
and the box has high precision and strong rigidity to ensure the
uniformity of the whole screen.
3. The box size is 640*640mm, and the weight of a single box is
11kg, which is very suitable for rental installation that requires
less manpower and quick installation.
4. There are four sets of quick locks on the left and right sides
and the upper and lower sides. No professional tools are required,
and the screen can be locked with both hands.
5. The power supply and receiving card control box are separated.
If there is a fault, it can be completely replaced.
6. Applicable places: large outdoor concerts, large celebration
parties, and can also be used for indoor rental occasions and
indoor fixed installation.
Specifications :
| Indoor SMD P5 |
| Resolution/mm | 5 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 40000/m² |
| Module resolution | 64x32 |
| Module size/mm | 320x160mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Advantages of LED Display:
1) High definition, adjustable, can display DVD, TV, dynamic
images, video recorders, graphics, text, animation, etc. 24 hours a
day. Clear, colorful, synchronized with computer monitors.
Waterproof, sun-proof, anti-static, moisture-proof, anti-freeze,
lightning protection, etc.
2) Optimal uniformity, excellent solution to the mosaic problem,
with excellent light consistency
3) Images and texts, with clear, delicate, and real LED display
screen display effect.
4) The horizontal and vertical line viewing angles are large, and
can be seen from all angles within this range, without image
changes and color shift.
5) Each LED lamp can be repaired, so the maintenance cost is low
and the LED display screen is easy to repair.
Package and delivery:
