    Indoor P3.91-7.82 Transparent LED Screen , 1000*500 cabinet 3840Hz refresh WI-FI control

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P3.91-7.82
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T
    Delivery Time : 7 working days
    Supply Ability : 3000sqm per month
    • Product Details
    • Company Profile

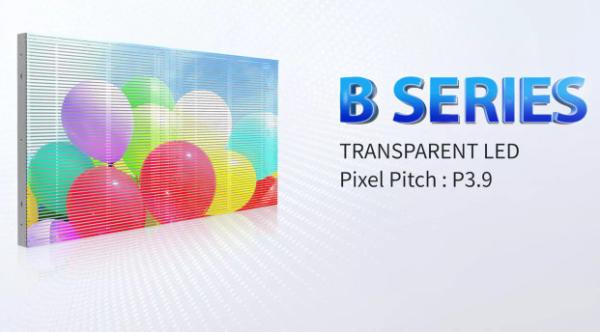

    Indoor P3.91-7.82 Transparent LED Screen , 1000*500 cabinet 3840Hz refresh WI-FI control

    Specification: P3.91-7.82mm HD video led module, cabinet size: 500*1000mm


    Transparent LED Screen

    Featured with high transparency, P3.91-7.82 Transparent LED Screen can be used at any place that has glass walls. Highly usable at places like bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.

    Name
    Technical parameters
    1,Pixel
    Pixel pitch:3.91 -7.82 mm
    Color:Red, green,blue
    Color combination:1R1PG1PB
    Density:32768 dot/m2
    2,Module
    Module resolution: width 128 × height 16
    Module size: 500mm×125mm
    Total image number of unit board: 2048 dots/pcs
    3,Whole screen
    Horizontal viewing angle of the screen: 90°-110°
    Vertical viewing angle of the screen: 45°- 90°
    Best viewing distance: 3~200M
    Storage temperature: -40℃ ~ +85℃
    Working temperature: -25℃ ~ +55℃
    Relative humidity: 10%~95%RH
    Screen weight: 7 kg/㎡
    Cabinet size: 1000MM*500MM
    Light transmittance: ≥70%
    Material: die-cast aluminum
    4,Power
    Working voltage: 220V±15%
    Power supply: 5V40A200W
    Average power consumption: 400~1000 W/㎡ (related to the video source being played)
    Maximum power consumption: 1000W/㎡
    Average power: 400W/㎡
    Power supply requirement: 220VAC±10%, 50Hz
    5,The main technical parameters
    1) Drive device: constant current drive IC
    2) Drive mode: 16 scans
    3) Refresh frequency: ≥1920Hz
    4) Brightness: ≥2000d/m2
    5) Control system adopted: synchronous control system
    6) Mean time between failures: ≥10000 hours
    7) Screen life: ≥100000 hours; continuous working time: ≥48 hours
    8) Flatness: between any adjacent pixels ≤0.5mm; module splicing gap <1mm;
    9) Blind spot rate: <0.0001 (discrete state)
    10) Protection level: IP43
    11) Protection performance: windproof, shockproof, flame retardant


    Space Saving, Ultra-lightweight, Customizable

    The Transparent LED Screen for Shopping Mall is only 65mm thick which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of 7kg/panel LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.


    High Transparent Effect

    It features transparent effect up to 70% keeping the perspective function of glass. The higher

    transparency effect allows you to see LED light on the glass without any effect to surround of glass wall.


    High Brightness, Better Quality

    The high brightness and high definition features of the PH5.21-5.21 Transparent LED Screen ensures great quality pictures - making it a perfect fit for stage, banks, glass wall, promotion, station, stadium and other indoor places.


    Silence Operation - Low Power Consumption

    The Transparent LED Screen for Shopping Mall is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.


    Application

    The PH5.21-5.21 Transparent LED Screen is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, banks etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.


    Unique Cabinet Design - Easy to Install & Transport

    Single light bar can be directly plugged in and pulled out which is easy to install and save time and effort. The portable cabinet is easy to carry and can also save transportation cost for you.


    Integrated Design, Fast Installation

    The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.


    • FAQ

    1.Q:Are you a factory or trading company?
    A:We are a factory,located in Dalang,Longhua District .
    2.Q:What kind of payment terms you accept?
    A:We accept T/T,Western Union,MoneyGram etc.
    3.Q:What's packaging?
    A:1.Flight case packaging
    2.Wooden case packaging
    3. 36pcs in one case packaging
    4.Customized packaging
    4.Q:Does you have CE/ROHS certificates?
    A:Yes, we offer the CE & ROHS certificates .
    5.Q:What's the shipping method,shipping time?
    A:Our products could be shipped by Sea, by Air, and by Express.
    by sea:20-40days; by air:5-10days ;by express:3-6days
