P16 Outdoor Full Color led display,P16 led display,full color led
screen
Product Description
1. High color contrast and consistency, high brightness to ensure
good display result.
2. CNC technology for cabinet, flatness between cabinet units
<0.2mm.
3. Energy saving and noiseless power supply, excellent heat
dissipation to ensure good stability and life span.
4. Constant current driver, luminance decrease <5% per year.
Specifications :
| outdoor DIP P16 |
| Resolution/mm | 16 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 3906/m² |
| Module resolution | 16x16 |
| Module size/mm | 256x256mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | static full color |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Features:
--- Durable fresh color and High brightness
Design of anti-glare mask with high temperature resistant coating
on the surface to absorb direct light, reduce glare, and improve
the contrast ratio of display.
Anti-UV, anti-oxidation module prevents from deformation.
On-site brightness and chroma calibration can recover the
uniformity.
---- High energy efficiency
Adopt high-brightness LED with low consumption, saving 20% power
energy.
High PFC power supply can cut 20% power consumption.
Additional temperature, display and brightness management can also
save 6% power energy.
---- Stability and reliability
Precise manufacturing process keeps the modules rugged and durable.
IP65 protection grade, waterproof rubber gasket and military-grade conformal coating
enable the display to work in all weather outdoor environments.
Aircraft-grade connectors of power supply and signal connection are
of high reliability, good conductivity and durability, suitable for rapid connection and high frequency use.
service:
Lamp bead damage can be repaired for lights on the screen, light
board can also be removed Depot Repair.
It will be equipped with the same batch of spare lamp beads IC,
display will not be affected.
Display time is too long will be aging, then there will be subtle
color change with a single minimal impact.
SCX is a high-tech company specialized in production and sales of
LED display, digital signage and other advertising multimedia
products research and development, and is committed to providing
solutions of electronic information engineering and various kinds
of information publish system development and application.

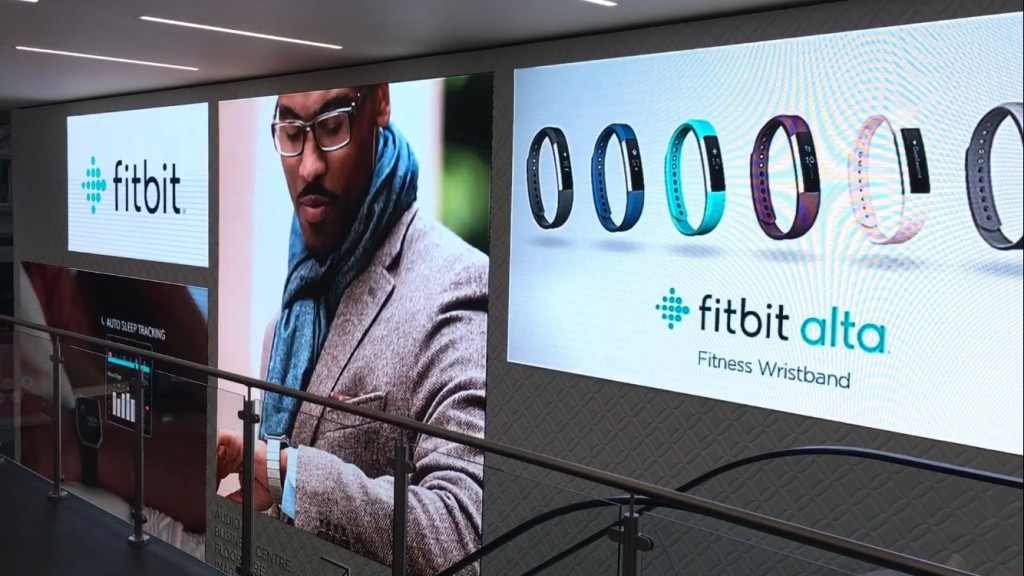

At present, company launched LED large screen products widely used
in outdoor advertising media, cultural and recreational activities,
sports stadiums, stage rental. With full color LED display system
advantage, from design, production, installation and maintenance,
using a full range of integrated solutions, We effectively reduce
the customer's cost, so as to create higher customer value.
