P8 Outdoor SMD LED display
Full Color Outdoor LED Display Screen P8
With rainproof, windproof, sun proof, moisture-proof, dustproof,
anti-corrosion and high temperature protection functions; and
over-current, circuit breaking, overvoltage, under-voltage
protections and anti-static, lightning-proof functions as well as
wind resistance 12-grade, high-temperature alarm and protection,
remote switch control functions.

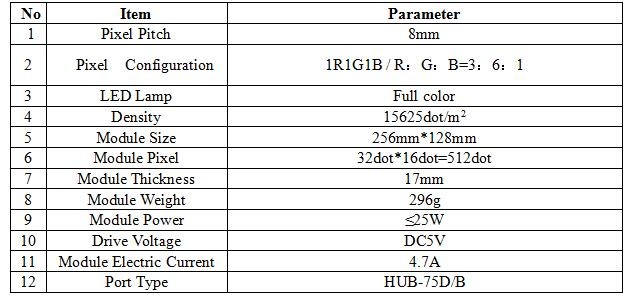

1. LED Light Parameter
2. Technology Parameters
3. Screen Parameters
| Parameter | GTKE080-D |
| Pixel | Module size | 320*160mm |
| Pixel pitch | 8 mm |
| pixels Density | 15625 dots/sqm |
| Pixel configuration | 1R1G1B |
| Brightness of single LED | R: 800mcd, G: 2400mcd, B: 600mcd |
| Pixel resolution | 40*20 |
| Max Power consumption | 40 w |
| Weight | 0.75 kg |
| Working voltage | DC5V |
| Cabinet | Dimension | 768*768mm |
| Power supply | 5V/40A |
| thermal discharge | fan |
| Total Weight | 55 kgs |
| Best viewing distance | 8 ~ 50m |
| Best viewing angle | 120°(H) /90°(V) |
| Ambient Temperature | storage: - 35 ~ + 85 |
| working: - 20 ~ + 65 |
| Working humidity | 90 ~ 95% |
| Power | Working voltage | AC220V / AC110V |
| Average Power consumption | 450 ~ 610 w/sqm |
| Max. Power consumption | ≤ 950 w/sqm |
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium 4 or above |
| Operating system | WIN 98/2000/NT/XP/me |
| control method | Synchronization, asynchronism are available |
| Main technical parameter | Driving device | Constant Current Driver IC |
| Drive type | 1/4 scan Driving |
| Refresh frequency | ≥120Hz/s |
| Grey scale/colors | 256 levels of each color(R/G/B)/ 16.7M colors |
| Brightness of white balance | ≥7,000cd/sqm |
| Brightness adjustment | 255 levels of each color(R/G/B) by software |
| Video Signal | PAL/NTSC |
| Control system | DVI graphic card + full color controller card |
| MTBF | ≥10,000 hours |
| Life span | About 100,000 hours |
| Flatness | Tolerance of interpixel≤0.3mm |
| Tolerance of modules clearance ≤1.5mm |
| Display Mode | 800*600; 1024*768 |
| Communication distance | ≥100 meters (UTP-5 CABLE) |
| Software | LED media player |
|
Application:
The full color P8 Fixed LED Display is widely outdoor rental stage
screen,perfectly as mian background for various stage shows,trade
shows,concerts,etc,with brilliant video quality,HD image viewing
and best viewing distance. It's equipped with fast-locking
system,100% no tools installation, very easy to assemble,dismantle
and maintenance.
Prices are very competitive, reaching good performance with limited
budget.
Product features:
1)Lightweight, space-saving and labour-saving.
2)Nice appearance and simple structures.
3)Quick locking methods, no tools installation.
4)With indicator lights and backside flexible door, easy to test
and maintain.
5)High brightness over 6000 nits, using at daytime.
6)IP65, waterproof.
7)High refresh rate, HD video performance.
8)Good prices and aftersales services.
