Brand Name : | SCXK |
Model Number : | p3 |
Certification : | CE/ROHS/FCC/SGS |
Price : | negotiation |
Payment Terms : | T/T or western Union |
Supply Ability : | 5,000/ Sq m per month |
Delivery Time : | 10 working days after received your payment |

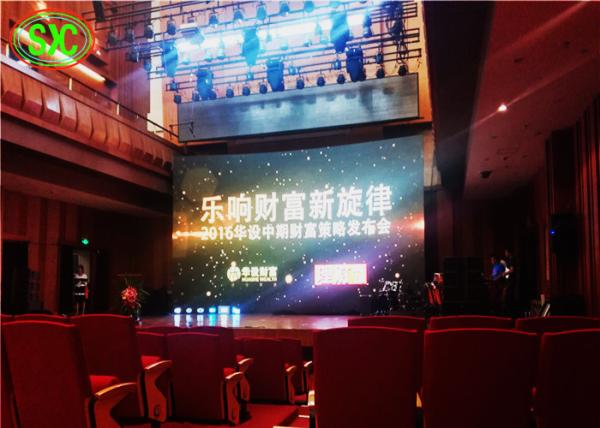

P4 high definition indoor smd full color led screen / stage rental led display
Shenzhen Shichuangxinke Eletronic Co., Ltd focuses on science and
technology with 12 years experience.from it's start, it develops a
series of new products with their own intellectual property. Some
unique international advanced technologies are applied to
production of various kinds of indoor and outdoor video display
system, LED video shining letter and unique fore maintenance and
rear maintenance product line, such as programmable hardware
nonlinear vision correction,
Point-to-point control and detection, chromatic multimedia output,
large scale integrated circuit and programmable ultra large scale
integrated circuit and etc, so that LED display images will be
clearer with more hierarchy and brighter color and products will be
of environmental protection and energy saving with high luminance
and long service life and excellent stability which reach
international standard.
Item | Parameter |
Pixel Pitch | 4mm |
LED Encapsulation | SMD2121/1R1G1B |
Cabinet resolution | 256dots*128dots |
Cabinet size(mm*mm) | 512mm*512mm |
Pixel density | 62500dots/m² |
Cabinet's material | Aluminum |
Cabinet Color | RED / BLUE / BLACK |
Drive Method | 1/16 Scanning |
Gray Scale | Recommended 256 level |
The best viewing angle | Horizontal:140 Vertical:90 |
Max Power Consumption | 1000W/ m² |
Control Mode | Video frequency synchronization |
Optimal Viewing Distance | ≥4m |
Brightness | ≥2000cd/m² |
Blind Spot Rate | <0.0001 |
Brightness Control | 0-255 Grade |
Contrast | 100 levels adjustable |
Earth Leakage Current | <2mA |
MTBF | >5000Hours |
Lifespan | >100000Hours |
Power Supply Mode | AC220V/50HZ or AC110V/60HZ |
Protection Level | IP41 |
Humidity | 0%~90% |
Operating System | Windows98/me/2000/NT/XP |
Operating temperture | Operation:-30°C~+60°C |
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
we can receive all kinds of transportation. and the shippment term.
FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large
production ability ,
you can feel free about this . By air ,by train, by sea?
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising
companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car
dealerships.
--- Architecture and social projects, information systems in
cities.
--- Show-business, concerts, festivals, motor shows and other
public events.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection
before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and
professional production ensure
our led display’s competitiveness.
Business Developer.
Fax:+86-0755-36810049
![]() |
