Mobile Led Roadshow Truck Full Color Outdoor Display Screen P5 P6
P8 mobile led display
Advanced Control Technology
a. Calibration: Pixel-by-pixel brightness and color calibration
technique to keep uniform brightness and natural colors of LED
display.
b. Monitoring: Proprietary control system can monitor the
temperature, brightness, status information of LED display in real
time.
c. Remote network control: Controlling and changing all display
information, controlling the displays of several cities in one
place to change the contents at any time.
d. Adjustable brightness: Adjusting screen brightness automatically
according to environmental lighting based on sensitive control
system, adjusting it manually or by programmable menu.
e. Large screen control: Controlling super large size display stably
without any black screen, frame vibration or reducing.
f. High refresh rate, high gray scale and high contrast ratio: More
realistic pictures optimize commercial advertisement value
what is difference between SMD and DIP led display?
Surface Mounted Device LED is short for SMD,through the SMT
technology encapsulating diode, soldering this lamp on the PCB
board surface. Widely used for indoor projects.
Dual in-line Package is short for DIP, after soldering the LED
lamp's feet to stable it on the PCB., so it names of DIP LED.
Mainly used for outdoor projects.
The comparison of SMD and DIP. SMD with RGB 3 colors in 1 LED cup
technology, with better colors uniformity, and wider viewing angle,
usually, SMD can be done the small pitch pixels,
so for some high resolution LED screen, SMD is the best choice.
DIP technology with LED foot in PCB board, then the heat
dissipation is better than SMD, and higher brightness, even under
the sunshine, DIP LED screen can also show the contents well.
That is the reason why people like DIP for outdoor used.
For the energy saving influence, SMD is a new technology, it is
high luminous efficiency and good heat dissipation,SMD is 30%
energy saving more than DIP.
Previously,SMD is only used for indoor LED screen, but with
technological breakthroughs in recent years, SMD brightness has
been greatly improved,
waterproof processing also be completely resolved, therefore, SMD
is more and more applied to the outdoor LED display in market.
Specification
| Parameter | |
| Pixel | Module size | 160mm*160MM |
| Pixel pitch | 5 mm |
| pixels Density | 20000dots/sqm |
| Pixel configuration | 1R1G1B |
| Brightness of single LED | R: 800mcd, G: 2400mcd, B: 600mcd |
| Pixel resolution | 32*32 |
| Max Power consumption | 40 w |
| Weight | 0.89 kg |
| Working voltage | DC5V |
| Cabinet | Dimension | 1024*768mm |
| Power supply | 5V/40A |
| thermal discharge | fan |
| Total Weight | 38 kgs |
| Best viewing distance | 8 ~ 50m |
| Best viewing angle | 120°(H) /90°(V) |
| Ambient Temperature | storage: - 30 ~ + 85 |
| working: - 20 ~ + 65 |
| Working humidity | 90 ~ 95% |
| Power | Working voltage | AC220V / AC110V |
| Average Power consumption | 450 ~ 610 w/sqm |
| Max. Power consumption | ≤ 950 w/sqm |
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium 4 or above |
| Operating system | WIN 98/2000/NT/XP/me |
| control method | Synchronization, asynchronism are available |
| Main technical parameter | Driving device | Constant Current Driver IC |
| Drive type | 1/8 scan Driving |
| Refresh frequency | ≥120Hz/s |
| Grey scale/colors | 256 levels of each color(R/G/B)/ 16.7M colors |
| Brightness of white balance | ≥7,000cd/sqm |
| Brightness adjustment | 255 levels of each color(R/G/B) by software |
| Video Signal | PAL/NTSC |
| Control system | DVI graphic card + full color controller card |
| MTBF | ≥10,000 hours |
| Life span | About 100,000 hours |
| Flatness | Tolerance of interpixel≤0.3mm |
| Tolerance of modules clearance ≤1.5mm |
| Display Mode | 800*600; 1024*768 |
| Communication distance | ≥100 meters (UTP-5 CABLE) |
| Software | LED media player |
|

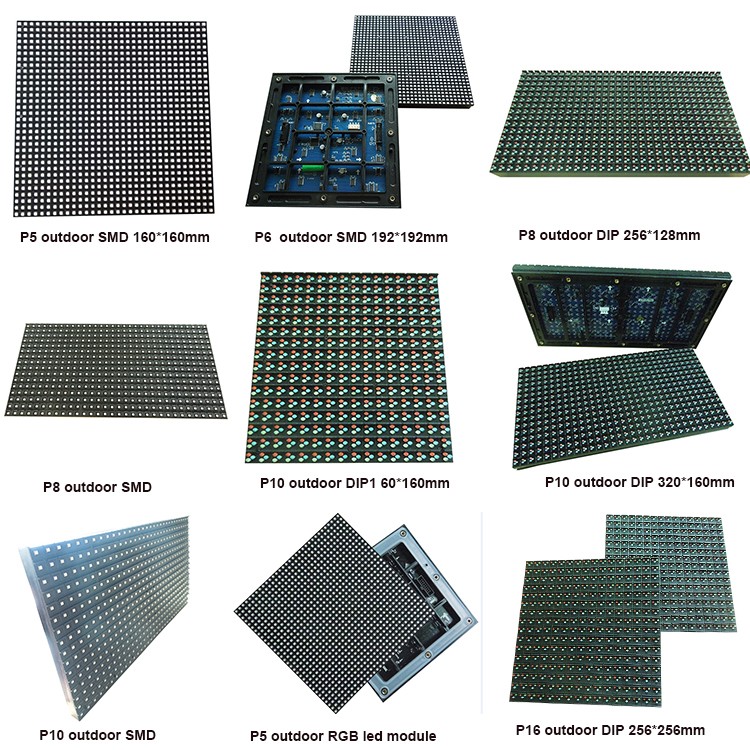

The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display
module will be available
The wire or wireless controll system are available .( 3g and wifi
controll will be welcome)
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Package
Payment and delivery
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection
before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and
professional production ensure
our led display’s competitiveness.
Thank you very much for viewing our website, and wish you a nice
day!
