P8 Large Billboard Outdoor Full Color Led Display Screen
Advertising Great Waterproof
Advanced Control Technology
a. Calibration: Pixel-by-pixel brightness and color calibration
technique to keep uniform brightness and natural colors of LED
display.
b. Monitoring: Proprietary control system can monitor the
temperature, brightness, status information of LED display in real
time.
c. Remote network control: Controlling and changing all display
information, controlling the displays of several cities in one
place to change the contents at any time.
d. Adjustable brightness: Adjusting screen brightness automatically
according to environmental lighting based on sensitive control
system, adjusting it manually or by programmable menu.
e. Large screen control: Controlling super large size display stably
without any black screen, frame vibration or reducing.
f. High refresh rate, high gray scale and high contrast ratio: More
realistic pictures optimize commercial advertisement value
Shenzhen Shichuangxinke Electronic Co., Ltd. is a professional
high-tech manufacturer engaged in LED display and peripheral
products R & D, production, sales and service in one. Companies
rely on advanced management mode, strong R & D and excellent
technical ability and rich in raw materials supplier chain, to
produce high quality products, the company spent more than 6 years
of time, carefully built a professional platform for a modern
enterprise. our company sells according to market demand,
industrial chain business model, has formed a complete advanced
system of production, is one of the fastest development high-tech
enterprises in domestic industry and the world's.

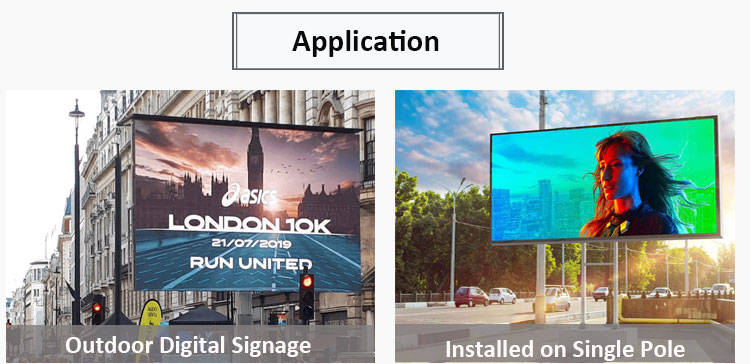

Application of LED display screen
1,Advertising LED display screen
LED display,with its unique advantages, has gradually replaced the
traditional billboards, light boxes,etc. LED display advertising
has become a new force in the media industry.Traditional
advertising can only show pictures, But LED display can perfect
combine text, pictures, video, and sound with high resolution, high
brightness and full color! LED display Advertising can easily
attract the attention of pedestrians, and also are easy to
remember,which can generate greater advertising effectiveness. Led
display advertising now are applied in main street, shopping mall,
Plaza Park, outstanding buildings, landmarks, airports, stations
and so on.
2,Stadium LED display screen
Led screen are used in stadium to live show, video play, slow
motion playback, specific lens display, sports score information
presentation, as well as commercials advertising.
The common cases are football field led screen fence, basketball
stadium center screen, and screens in swimming stadium, Athletics
stadium, etc.
3,Transportation LED display screen
In the busy streets of city or on the highway, we can see LED
display screen, these screens are generally controlled by a unified
control center, in conjunction with other traffic monitoring
equipment, automatic display traffic flow or traffic jam
information. Also screens display weather, traffic regulations, to
remind drivers to drive safely, and has the effect of signpost. The
main application areas are in the city's main roads, road density
lots, highways and other places.
4,Stage rental LED display screen
LED rental screens can easily installed and removed, also easy to
transport.LED rental screens now are widely used in stage show,
concert,theater, party,and other entertainment event as background,
it can be live show and replay,and its so big that audience far
away from the stage can see the performance on the stage clearly,
creating a magnificent , highly infectious atmosphere, combined
with highquality sound, giving a perfect visual feast.
Specification
| Parameter | |
| Pixel | Module size | 256*128mm |
| Pixel pitch | 8 mm |
| pixels Density | 15625 dots/sqm |
| Pixel configuration | 1R1G1B |
| Brightness of single LED | R: 800mcd, G: 2400mcd, B: 600mcd |
| Pixel resolution | 32*16 |
| Max Power consumption | 40 w |
| Weight | 0.65 kg |
| Working voltage | DC5V |
| Cabinet | Dimension | 1024*768mm |
| Power supply | 5V/40A |
| thermal discharge | fan |
| Total Weight | 55 kgs |
| Best viewing distance | 8 ~ 50m |
| Best viewing angle | 120°(H) /90°(V) |
| Ambient Temperature | storage: - 30 ~ + 85 |
| working: - 20 ~ + 65 |
| Working humidity | 90 ~ 95% |
| Power | Working voltage | AC220V / AC110V |
| Average Power consumption | 450 ~ 610 w/sqm |
| Max. Power consumption | ≤ 950 w/sqm |
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium 4 or above |
| Operating system | WIN 98/2000/NT/XP/me |
| control method | Synchronization, asynchronism are available |
| Main technical parameter | Driving device | Constant Current Driver IC |
| Drive type | 1/4 scan Driving |
| Refresh frequency | ≥120Hz/s |
| Grey scale/colors | 256 levels of each color(R/G/B)/ 16.7M colors |
| Brightness of white balance | ≥7,000cd/sqm |
| Brightness adjustment | 255 levels of each color(R/G/B) by software |
| Video Signal | PAL/NTSC |
| Control system | DVI graphic card + full color controller card |
| MTBF | ≥10,000 hours |
| Life span | About 100,000 hours |
| Flatness | Tolerance of interpixel≤0.3mm |
| Tolerance of modules clearance ≤1.5mm |
| Display Mode | 800*600; 1024*768 |
| Communication distance | ≥100 meters (UTP-5 CABLE) |
| Software | LED media player |
|
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display
module will be available
The wire or wireless controll system are available .( 3g and wifi
controll will be welcome)
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection
before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and
professional production ensure
our led display’s competitiveness.
