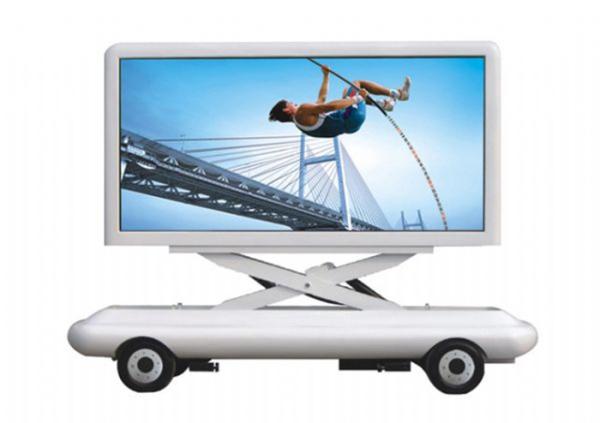

Video P10 Led Mobile Display Board , Truck Mounted Led Screen Full
Color
Main features:
1). Wide application field : Outdoor Commercial advertising LED display screen, LED display
board for shopping mall,Stadium perimeter LED display
,bank&stock exchange LED display screen for rates showing,train
& bus station LED display screen .
2). High brightness:7000cd/m2 Automatic or manual adjustment of the brightness of the display.
3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip
to ensure the long lifetime and high brightness of our LED display
system.
4). Clear vivid image quality: Throughout the show, the picture clear, bright color.
5).Installation is simple,easy to use: Easy and simple installation interface and user friendly software
to ensure that customers use easily
♦ Technical specification
| outdoor SMD P10 |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000m2 |
| Module resolution | 32*16 |
| Module size/mm | 320*160 |
| View distance | ≥10m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >6000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Driving mode | Constant driving current |
| Scanning mode | static dring |
| Frame rate | 60Hz |
| Refresh frequency | 3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | >72hours |
| Mean time Between Failure | >500hours |
| life time | >100000hours |
| Envirornment temperature range | operating temperature range -200c-500c |
| Maximun power :/m2 | -<600w |
| Average power:/m2 | <200w |
| Self-check technolog | LEDspot self-check,communication check,power check,temperature
monitor(need customization) |
| Remote monitoring | Remote supervision and control,record potential fault send out
warning signs to the operators(need customization) |
| Software environment | windows NT,Windows 1999,Windows XP |
| Input power cable | AC110v to220v |
| Signal input | DVI |
| Warranty | 2years quality warranty ,10 years spare parts support |
Packaging & Shipping
Packaging: Wooden or flight case for option
Shipping: By air, sea, DHL and so on.
Our Service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by
our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our
distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 3 years warranty
FAQ
Q1: WIFI or 4G controller card, which one is best?
A: For less quantity, you could choose the wifi controller card,
the cost will more economic.
The disadvantage of the wifi controller is that you have to be
close to the screen when you need to update the advertisements.
Q2: How to install the screen on the top of car?
A: Yes, we can provide you API, then your engineer can design your
own platform.
Q3: May I use my own platform to control the screen?
A: We will provide a video guide for you, with a bracket to fix the
screen on the car roof.
Q4: May I know what's advertising display on the screen?
A: You can see the log on the platform. There will show you a list.
Q5: The screen can adjust the brightness automatical?
A: With a brightness sensor, the screen can adjust brightness
automatical.
Q6: Before delivery, what test will do for the screen?
A: We will do 72 hours aging test and waterproof test.
Our team will be forever here to offer you full supports!
