P6 Outdoor Commcercial Advertising LED Video Wall Digital
Billboards 192*192mm
Products function introduction:
1) High intensity and can be adjusted, so can meet the request of
the customers according the environment.
2) Best equality, commendably solve the problem of the mosaic, have
the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real
display effect LED Curtain Screen.
4) Big viewing angle to 110 degree at horizontal line, 60 degree at
vertical line.
5) Can repair each led lamps, so the cost of maintain is lower, and
easy to repair.
6) Usually apply for physical sports, advertisement, bank, stock
exchange, station, port, indoor P6 display etc.
Features
◆3 times aging process.
◆Salty spray test, high voltage test, varying temperature test,
waterproof test, vibration test.
◆Long service time and low attenuation by applying dual channels
for heat dissipation.
◆High protection grade of IP66 achieved by patented mask design
with waterproof and dustproof fuction.
◆No deformation under sunlight by the use of Anti-UV module mask,
Anti-Oxidation module frame with protection from deformation.
◆Energy Saving Outdoor Fixed LED Display
◆Able to work in all weather outdoor environments. High protection
grade of IP65 suitable for winter and cold areas like North
European countries and Russia, and high temperature like KSA, Oman,
UAE, etc.
◆Super light p6 outdoor led screen for rental use movable led
display for concert background
◆Night club, Entertainment events, New product press conference,
Stadiums, Stages background, TV shows, Concerts, TV Studio etc.
Specifications :
| Outdoor SMD P6 |
| Resolution/mm | 6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 27778/m² |
| Module Resolution | 32*32 |
| Module size/mm | 192x192mm |
| View distance | 6-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/13 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

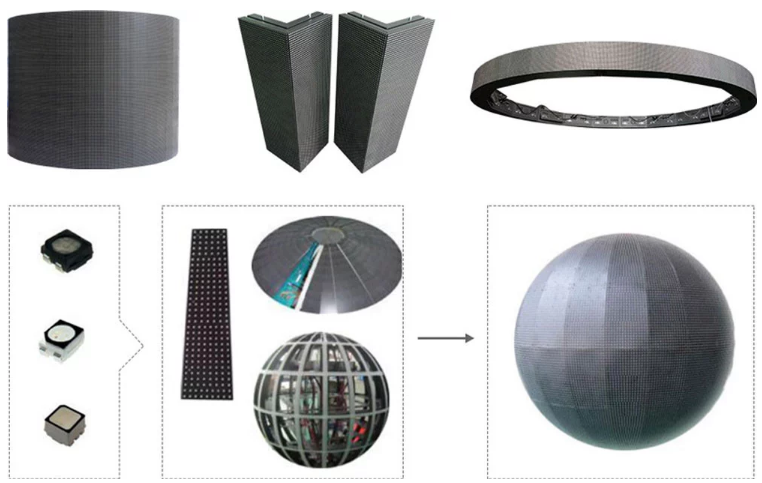

Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display,
Round LED display, LED ball.
LEDFUL supply more design and more solutions.
Our Service
1)Your inquiry related to our products or price will be replied in
24hrs
2)OEM&ODM,any your customized lightings we can help you to
design and put into product
3)Distributoership are offered for your unique design and some our
current models
4)Protection of your sales area,ideas of design and all your
private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful
& Win
Trade Terms
1.Payment:T/T,30% deposits before production,70% balance to be paid
before dleiverying
2.Shipping freight are quoted under your requests
3.Shipping port:ShenZhen,Mainland China
4.MOQ:1sqm
Certifications
Our Projects
