Brand Name : | SCXK |
Model Number : | SCXK-P10 |
Certification : | CE,ROHS ,FCC,UL ISO2001 |
Price : | negotiation |
Payment Terms : | L/C, T/T, Western Union, MoneyGram, D/P, D/A, L/C |
Supply Ability : | 1000sqm/month. we can make the led display on time |
Delivery Time : | 7-10days |

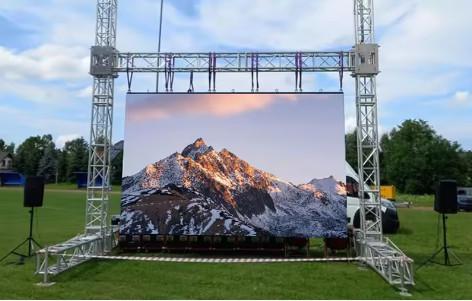

7500 Cd / Sqm Rental Led Rgb Panel , Multi Color Led Display Advertising
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are
comprehensive, and also we have three display mode as VGA+VIDE and
VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7
millions, and the brightness, contrast, saturation, chroma can be
adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video,
2-dimention, 3-dimention cartoon and other information with your PC
does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content,
and also can be controlled remotely via VPM+ADSL.
Product Parameters
item | Specification | |
Panel | panel dimension | 320mm*160mm |
panel pixel pitch | 10mm | |
panel pixel density | 10000dots/M² | |
panel canfiguration | 1R1G1B | |
LED specification | SMD3535 | |
panel pixel resolution | 32*16dots | |
Average power | 10W | |
panel weight | 0.455kg | |
panel power supply | 5V40A | |
cabinet | Cabinet size | 640mm*640mm |
Best viewing angel | H:>170°,V:>120° | |
Best viewing distance | 6~100M | |
working tempreture | -20~+65 | |
Technical parameter | Screen power supply | AC 220V~250V |
Max power | 700W/M² | |
Average power | 350W~500W/M² | |
Driving device | 16016 constant current drive | |
Drive type | 1/4 scanning | |
Refresh frequence | 240-1000HZ/S | |
display color | 4096*4096*4096 | |
Brightness | 7000-7500cd/M² | |
Communication distance | 100m |
Q1.How to arrange payment?
Our payment terms in usually is T/T payment,for sample and small
order,Western union,Paypal or Moneygram also be acceptable
Q2.What is our warranty?
Our warranty from 5year to 1year basis on different type led
screen,In usually every screen we will ready more extra led screen
moduless as spare modules,
if some modules happen fails,you can replace the fail modules by
our spare modules,When all the spare modules use out,You can send
back these modules
to us for repair,and we will send to you after repair and
testing&aging well
Q3.How to be our distributor?
To be our distributor,We can share our profit together with you in
every year,Also we can send our engieer or sales to your compay to
support
your business,also for led screen after-service,We will together
with you to the after-service in the whole led screen life time
![]() |
