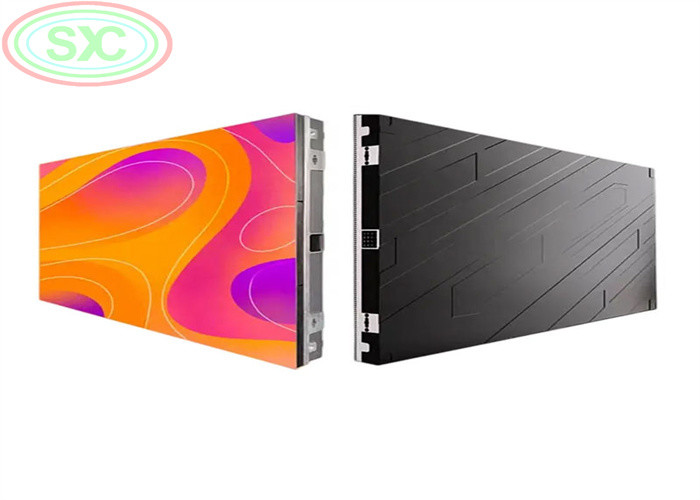

P6 advertisement 27777dots / qm Outdoor LED Billboard 192mm x192mm
module size
What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor
which is used to give and receive the electronic signal into
infrared rays or light, using the characteristics of compound
semiconductor. This is used for household appliances, remote
controller, electric bulletin board, various kinds of automation
appliances.
What is Drive Method, driving IC and Power supply?
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter
one contributes to less brightness than the former. We always use
the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to
control the LED lamps, and as a bridge between the control system
and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC.
It always seems like a box in the cabinet.
What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with
acceptable visual performance. It includes horizontal viewing angle
and vertical viewing angle.
What are refresh rate and frame rate?
Refresh rate is the number of times a display’s image is repainted or refreshed
per second. As it denotes a frequency of a process, the refresh
rate is expressed in hertz. That is, a refresh rate of 75 Hz means
the image is refreshed 75 times in one second.
Frame rate, or frame frequency, is the frequency (rate) at which an imaging device produces
unique consecutive images called frames. The term applies equally
well to computer graphics, video cameras, film cameras, and motion
capture systems. Frame rate is most often expressed in frames per
second (FPS), and is also expressed in progressive scan monitors as
hertz (Hz).
Product Parameters
| Module Parameters |
| 1 |
Pixel Pitch | 6mm | 5 | Module size(mm) | 192*192mm |
| 2 | Physical Density(dots/sqm) | 27777 | 6 | Module Resolution | 32*32 |
| 3 | LED Shape | SMD3535 | 7 | Drive Mode | 1/8 |
| 4 | LED Configuration | 1R1G1B | 8 | Operation Temperature | -20°C∼60°C |
| Cabinet Parameters |
| 1 | Cabinet Size | 768mmx768mm | 9 | Brightness | ≥7500nits |
| 2 | Cabinet resolution | 96*96dots | 10 | Average power consumption(w/m²) | 500 |
| 3 | Led Chip | Epistar(From Taiwan) | 11 | Max power consumption(w/m²) | 900 |
| 4 | Cabinet material | Steel | 12 | Refresh Rate(Hz/s) | ≥2500 |
| 5 | Viewing angle | 140H/120V | 13 | IP Rating | Front:IP65,Rear:IP54 |
| 6 | Color number | 281 trillion | 14 | Working Voltage | 220-380V±10%,47∼64Hz |
| 7 | Input Power | DC5V | 15 | Display Mode | Synchronous with video source |
| 8 | Screen Life Span | ≥10000hours | 16 | Signal Communication | DVI,RS232,LAN
|
| the outdoor full color led display module ( smd and dip are
available) |
|
| Number | Drive mode | Moduel size | Resolution | Led standard | pixel density |
| P4 | 1/8 scan | 256x128mm | 64x32 | 3in1 | 62500 |
| p4.81 | 1/13scan | 250x250mm | 52x52 | 3in1 | 43222 |
| p5 | 1/8 scan | 160x160mm | 32x32 | 3in1 | 40000 |
| P6 | 1/8 scan | 192x192mm | 32x32 | 3in1 | 27778 |
| P8 | 1/4scan | 256x128mm | 32x16 | 3in1 | 15625 |
| P10 | 1/4scan | 160x160mm | 16x16 | 3in1 | 10000 |
| P12 | 1/4scan | 192x192mm | 16x16 | 3in1 | 6944 |
| P16 | static scan | 256x256mm | 16x16 | 3in1 | 3906 |
| P20 | static scan | 320x160mm | 16x8 | 3in1 | 2500 |
| P25 | static scan | 200x200mm | 8x8 | 3in1 | 1600 |
| P31.25 | static scan | 250x250mm | 8x8 | 3in1 | 1024 |
Features:
1. high brightness 8000~10000nits
2. High color uniformity and clear image
3. Famous Brand chip: Epistar, IC: MBI
4. Used for meeting room,lobby of hotel ,cinema,shopping mall and
station,airport, studio,stadium and studio.
Packing>>>
For iron cabinet led display screen of indoor or outdoor,we usually
use wooden case to packing
For aluminum cabinet of led rental stage display,we usuallu use
flight case to packing
One wooden case including 2 cabinets,one flight case including 6
cabinets
Shippment>>>
By air or sea,FOB shenzhen
UPS/DHL/Fedex/Express(door to door)and so on
Delivery time>>>
within 20 days counting from 30% prepayment arrived at Suyen
account.
Payment term>>>
T/T(30% deposit,the remained 70% payment made before factory
shipment )
Western union/paypal/L/C and so on
Quality assurance>>>
We offer 6 years warranty,and our products have passd CE,RoHS,FCC
certificate ,All products have Age testing,s
haking testing,waterproof testing,In generally,Module test is
24h,entire screen test is 72h,A series of testing before delivery
can ensure transportation and quality products.
