RGB DIP346 P16 Outdoor Rental LED Display advertising 256x256mm
module
We are a professional manufacturer of outdoor and indoor LED
displays. So far, we have customers all over the world and they
keep good business relationship with us. If you want to know more
information, we can send you some contact information of our
customers, you can try to contact them and get some feedback.
Through our joint efforts, we can become better business partners.
No matter what problems you encounter, please feel free to contact
us. We can provide various types of LED displays.
1.Application

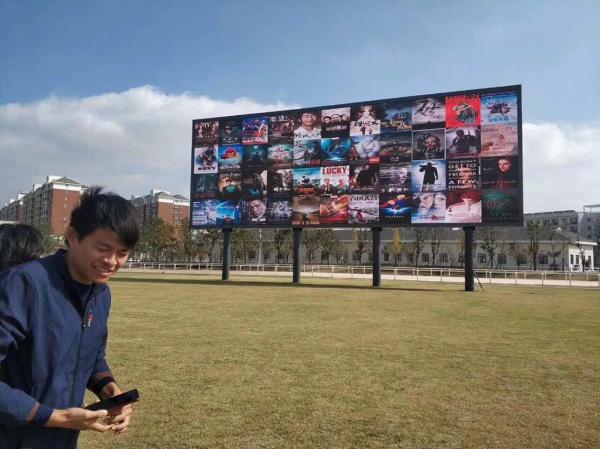

Widely use in stadiums, advertisement, banks, securities exchange,
stations, shopping malls, postal offices, schools, restaurants,
entertainment, enterprises ,highway etc
2.Market:
North America, South America, Eastern Europe, Southeast Asia,
Africa, Oceania, Mid East, Eastern Asia, Western Europe
Product description,
The DIP346 outdoor full color P16 is good for led billboard usage.The larger the size, the better the effect
It's cost-effective ,the price is very lower at the size. And good
view distance,It can work well under sunshine and rain.IP65,iron
and steel cabinet .
3 years warranty. if your size is big ,we will give you much more
discount .( That's our main product)
The outdoor P16 parameter as follows.
| LED Lamps | Type | DIP346(High Brightness LEDs) |
| LED Standard | Real Pixel(1R1G1B) |
| Red Wavelength | 625-630nm |
| Green Wavelength | 515-530nm |
| Blue Wavelength | 465-475nm |
| LED Module | Pixel Pitch | 16mm |
| Module Size | 256mm x256mm |
| Module Resolution | 16*16dots |
| LED Cabinet | Cabinet Size | 1024mmX1024mm |
| Cabinet Resolution | 64pixels *64pixels |
| Cabinets Material | Sealed Iron Cabinet |
| LED Display | Pixel Density | 3906pixels/sq.m |
| Drive IC | MBI5124 |
| Power Supply | Series connection |
| Brightness | >7500cd/sqm |
| Display Color | 16.7million |
| Viewing Angle | 160°(Horizontal),110°(Vertical) |
| Best Viewing Distance | 12m~200m |
| Max Power Consumption | 600 w/sq.m |
| Average Power Consumption | | | 300 w/sq.m |
| Weight | 40kgs/sq.m |
| Refresh Rate | 2000hz |
| Input Voltage | AC220V/50H or AC110V/60H |
| Output Voltage | DC5V,40A |
| Grey Scale Levels | 16bit |
| Display Colors | R(1024) x G(1024) x B(1024) |
| Life-span | 100,000 hours |
| Protection Level | IP65 |
| Failure percentage of leds | | | less than 0.0003 |
| Working Temperature | -25℃~65℃ |
| Drive Mode | static scaning |
| Working Humidity | 10%~99% |
We still have some other style led display.The parameter as
follows.
| the outdoor full color led display module ( smd and dip are
available) |
|
| Number | Drive mode | Moduel size | Resolution | Led standard | pixel density |
| P4 | 1/8 scan | 256x128mm | 64x32 | 3in1 | 62500 |
| p4.81 | 1/13scan | 250x250mm | 52x52 | 3in1 | 43222 |
| p5 | 1/8 scan | 160x160mm | 32x32 | 3in1 | 40000 |
| P6 | 1/8 scan | 192x192mm | 32x32 | 3in1 | 27778 |
| P8 | 1/4scan | 256x128mm | 32x16 | 3in1 | 15625 |
| P10 | 1/4scan | 160x160mm | 16x16 | 3in1 | 10000 |
| P12 | 1/4scan | 192x192mm | 16x16 | 3in1 | 6944 |
| P16 | static scan | 256x256mm | 16x16 | 3in1 | 3906 |
| P20 | static scan | 320x160mm | 16x8 | 3in1 | 2500 |
| P25 | static scan | 200x200mm | 8x8 | 3in1 | 1600 |
| P31.25 | static scan | 250x250mm | 8x8 | 3in1 | 1024 |
| the indoor full color led display module( indoor usage only) |
|
| Number | drive mode | module size | resolution | led standard | pixel density |
| p1.923 | 1/32scan | 246x246mm | 128x128 | 3 in 1 | 270420 |
| p2 | 1/32scan | 128x64mm | 64x32 | 3 in 1 | 250000 |
| p2.5 | 1/16scan | 160x160mm | 64x64 | 3 in 1 | 160000 |
| p3 | 1/16scan | 192x192mm | 64x64 | 3 in 1 | 111111 |
| p3.91 | 1/16scan | 250x250mm | 64x64 | 3 in 1 | 65410 |
| p4 | 1/16scan | 256x128mm | 64x32 | 3 in 1 | 62500 |
| p5 | 1/16/scan | 320x160mm | 64x32 | 3 in 1 | 40000 |
| p6 | 1/16scan | 384x192mm | 64x32 | 3 in 1 | 27778 |
| p7.62 | 1/8 scan | 244x244mm | 32x16 | 3 in 1 | 17222 |
| p10 | 1/8 scan | 320x160mm | 32x16 | 3in 1 | 10000
|
The outdoor full color led display parameter,
The full waterproof modules are of high reliable performance and
capable to sink into water directly that delivers high-resolution
images
with unequalled brightness and contrast levels. Available in
various pixel pitches,
they generate the perfect picture at all times, even in direct
sunlight.
Spare parts warranty period Configuration Guidelines
(1)Adequacy: With the specific equipment, spare parts allocation
adequate, ensure replacement in the first time of equipment
failure;
(2)Necessity: On the basis of previous maintenance experience, we
configure the spare parts are the key parts of the equipment,
so as to ensure the economic allocation;
(3)Economic practicality: In order to deal with the fault in the
shortest time, we configure the spare parts are complete module or
unit,
through our training, the owners can easily replace the spare
parts, so as to ensure the normal operation of the system.
