High Brightness Waterproof P6 Outdoor Full Color LED Display
Billboards for Churches Street Advertisement
The high resolution LED
billboard is known for displaying great quality pictures and videos to a
broader audience. Highly usable for outdoor advertising such as
banks, stages, promotion, exhibitions, highways, stations, stadiums
and other outdoor areas.
Protection Rate IP65 and Module Style Design.
The special waterproof design of P6 SMD Outdoor LED Billboard
protects it from water and dust. When instalLED in outdoor areas,
protection is a serious matter. Special guard protects it from
environment dangers. High IP Rating IP65 ensures great quality
outputs in every condition.
Technical Parameters
| Outdoor SMD P6 |
| Lamp size | 3535 |
| Resolution/mm | 6 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 32x32 |
| Module size/mm | 192*192 |
| View distance | ≥5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1800cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
LED Billboards Quick Details
1. High brightness
2. Big viewing angle
3, Good white balance
4. Long aging time
LED Billboards Description
1. P10 1R1G1B led display, with 10000dots![High Brightness Waterproof Outdoor Full Color LED Display Billboards for Street Advertisement]()
m, which guarantee vivid and clear image effection.
2. Cabinets with Protection grade IP65 front and IP54 rear,
suitable for all outdoor working environment.
3. Fast locks at the four sides of the cabinet, easy assemble and
be piled up and be hoisted.
4. Backside maintenance. Exterior exposed module screws, easy
dismantling.
5. Waterproof connectors, safe and steady.
Control System

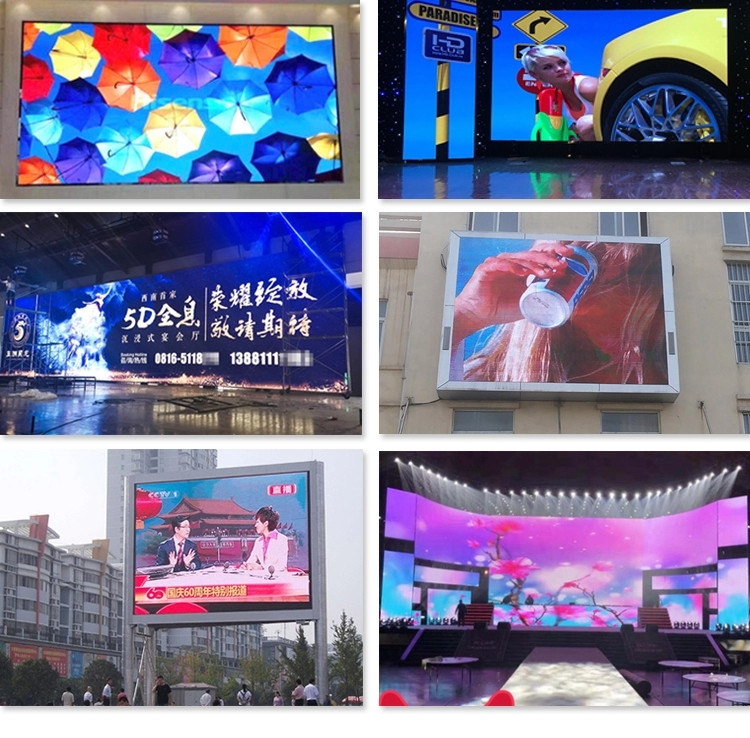

LED Billboards Application
--- Outdoor and indoor advertising, digital billboards, advertising
companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car
dealerships.
--- Architecture and social projects, information systems in
cities.
--- Show-business, concerts, festivals, motor shows and other
public events.
Our Service
1) Guidance service: We can guide on line if customers have
questions about the installation and usage.
For large project, we provide your engineer a week free training,
or if customer could bear the relevant cost,
our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon
as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all
maintenance charges.
Under normal use and storage, our company will be responsible for
the equipments.
If there is any failure in product quality, our company will
maintain and change the components for free.
After Maintenance period, only charge the material costs fees free
of manual work fees.
