IP65 Waterproof Dj 3d Led Dance Floor , Light Up Dance Floor For
Wedding Decorations
♦ Description

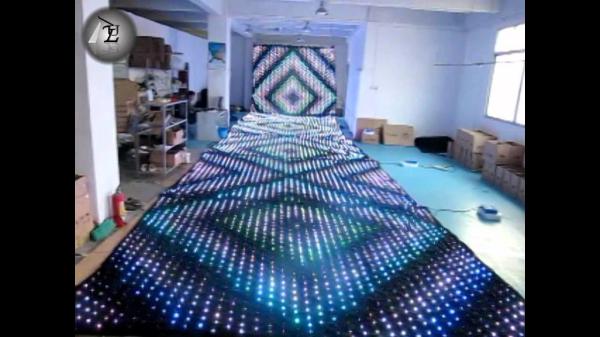

Led video dance floor is a new digital terrestrial. Our led dance
floor uses a high strength resin mask, the support of solid
aluminum die-casting equipment, big load-bearing capacity, easy to
connect, can be directly stampede with highly performance
protective structure, can be connected seamlessly next panel,
random combinations.
♦ RGB colorful LED dance floor
Ø Unlimited programming effects
Ø Special lighting effect
Ø 32-bit colour (16.7 million color combinations)
Ø Modular & highly portable
Ø Quick and easy installation
Ø More affordable than any existing solutions
Ø Sealed for long, durable lifetime
♦ Product specification
| LED Specifications |
| 1 | Type | SMD |
| 2 | LED Standard | Real Pixel(1R1G1B) |
| 3 | Red Wavelength | 625-630nm |
| 4 | Green Wavelength | 515-530nm |
| 5 | Blue Wavelength | 465-475nm |
| Module Specifications |
| 1 | Pixel Pitch | 4.81mm |
| 2 | Resolution | 52x52dots |
| 3 | Module size | 250x250mm |
| Cabinet Specifications |
| 1 | Cabinet Size(W*H) | 500x500mm |
| 2 | Cabinet Resolution | 104x104dots |
| 3 | Pixel Density | 43222dots/㎡ |
| 4 | Cabinet Weight | ≤6.5kg |
| 5 | Material | die casting aluminum |
| 6 | Flatness of cabinet | ≤0.3mm |
| Screen Parameters |
| 1 | Color /Brightness Calibration | Yes |
| 2 | Color Temperature(K) | 3000-10000 |
| 3 | Light Centre Distance Deviation | ＜3% |
| 4 | Brightness Uniformity | ≥97% |
| 5 | Color Uniformity | Within ±0.003C×,Cy |
| 6 | Contrast Ratio | 5000:1 |
| 7 | View Angle | Horizontal160°/ Vertical 140° |
| 8 | Input Voltage | AC100~240V(50-60Hz) |
| 9 | Power Consumption | Max:800w/㎡ Avg:280w/㎡ |
| 10 | Driving Method | 13 scaning |
| 11 | Protection Level | IP65 waterproof |
| 12 | Grey Scale Levels | R(256) G(256) B(256) |
| 13 | Life Span | 100,000 Hrs |
| 14 | Temperature-Operating | -20 — 40℃ |
| 15 | Humidity-Operating | 10 - 95% |
| 16 | Features | anti-slip,anti-collision,big load-bearing capacity |
| 17 | Usage | led floors, led wall background |
| 18 | Display function | txt, picture, video |
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Applications
Stage,Sports,advertising,traffic,events,stadium,shopping
center,airport,exhibitions, car shows, fashion
shows, concerts, ceremonies, entertainment,etc.
