P20 outdoor full color led display epistar chip for fixing usage
water proof cabinet DIP346
Features:
1.High and adjustable LED brightness can meet the demands of the
changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity
of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The
images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for outdoor displays
to increase the resolution up to four times of real pixel, making
the images softer and vivider
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of
vent fan.
7. Environmental-friendly and energy-saving.
We Can design and manufacture as the customer’s requirement
Stable performance, wide applicability, high refresh rate, high
protection grade, superb cost effective:
1. The cabinets, featuring great moisture and corrosion proofing,
enable
themselves to work in all weather conditions.
2. Superb refresh rate provides you coherent video effects to meet
your needs for high display quality.
3. Superb cost effective offers you both top notch quality and
reasonable price, maximizing the value of your investment
Our advantage
1.High quality:100% tested before shipping, Best quality LED chip tube the CREE,
SILAN, OPTO, EPISTAR assuring high brightness and long life span.
industry-leading
2.Strong productivity: 8000 square meters per month, Shorter delivery time
3.Good price:our price is 10% lower than the market because of the introduction
of full
automatic production line with the characteristics of reducing the
cost of labor and management.
4. Stable performance:our most basic guarantee:the aging time exceeding 24 hours.
Malfunction
dot rate less than 0.0001. MTBF more than 1000 hours.
5.Any questions can be answerd quickly within 24 hrs.

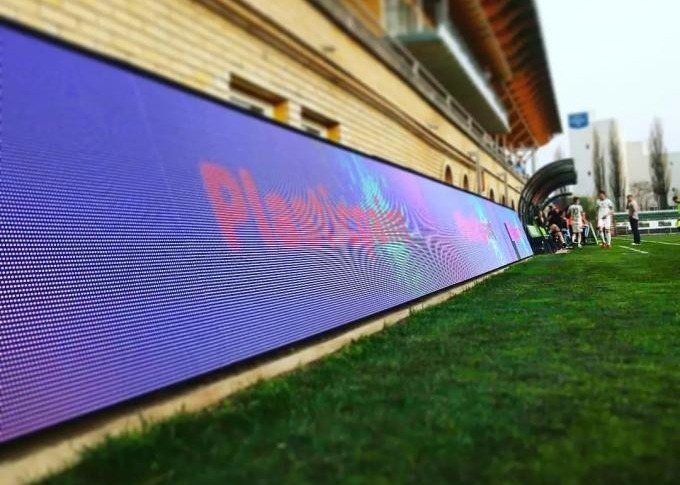

That's good for advertisement usage.Good for publicity usage.
The outdoo P20 DIP Led display paramter as follows
| | P20 DIP outdoor full color led display |
| LED Lamps | Type | DIP346(High Brightness LEDs) |
| LED Standard | Real Pixel(1R1G1B) |
| Red Wavelength | 625-630nm |
| Green Wavelength | 515-530nm |
| Blue Wavelength | 465-475nm |
| LED Module | Pixel Pitch | 20mm |
| Module Size | 320mmx 160mm |
| Module Resolution | 16*8dots |
| LED Cabinet | Cabinet Size | 960mmX960mm |
| Cabinet Resolution | 48pixels *48pixels |
| Cabinets Material | Sealed Iron Cabinet |
| contorl system | input signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc |
| PC system | Operating system | Microsoft Windows 7, 98, 2000, XP and Vista |
.
Here is our parameter!that include the outdoor and indoor full
color led display
| the outdoor full color led display module ( smd and dip are
available) |
|
| Number | Drive mode | Moduel size | Resolution | Led standard | pixel density |
| P4 | 1/8 scan | 256x128mm | 64x32 | 3in1 | 62500 |
| p4.81 | 1/13scan | 250x250mm | 52x52 | 3in1 | 43222 |
| p5 | 1/8 scan | 160x160mm | 32x32 | 3in1 | 40000 |
| P6 | 1/8 scan | 192x192mm | 32x32 | 3in1 | 27778 |
| P8 | 1/4scan | 256x128mm | 32x16 | 3in1 | 15625 |
| P10 | 1/4scan | 160x160mm | 16x16 | 3in1 | 10000 |
| P12 | 1/4scan | 192x192mm | 16x16 | 3in1 | 6944 |
| P16 | static scan | 256x256mm | 16x16 | 3in1 | 3906 |
| P20 | static scan | 320x160mm | 16x8 | 3in1 | 2500 |
| P25 | static scan | 200x200mm | 8x8 | 3in1 | 1600 |
| P31.25 | static scan | 250x250mm | 8x8 | 3in1 | 1024 |
| the indoor full color led display module( indoor usage only) |
|
| Number | drive mode | module size | resolution | led standard | pixel density |
| p1.923 | 1/32scan | 246x246mm | 128x128 | 3 in 1 | 270420 |
| p2 | 1/32scan | 128x64mm | 64x32 | 3 in 1 | 250000 |
| p2.5 | 1/16scan | 160x160mm | 64x64 | 3 in 1 | 160000 |
| p3 | 1/16scan | 192x192mm | 64x64 | 3 in 1 | 111111 |
| p3.91 | 1/16scan | 250x250mm | 64x64 | 3 in 1 | 65410 |
| p4 | 1/16scan | 256x128mm | 64x32 | 3 in 1 | 62500 |
| p5 | 1/16/scan | 320x160mm | 64x32 | 3 in 1 | 40000 |
| p6 | 1/16scan | 384x192mm | 64x32 | 3 in 1 | 27778 |
| p7.62 | 1/8 scan | 244x244mm | 32x16 | 3 in 1 | 17222 |
| p10 | 1/8 scan | 320x160mm | 32x16 | 3in 1 | 10000
|
Led display Packaging
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
