Outdoor SMD3535 P10 LED Display Screen Big Advertising LED
Billboard 3x5m Suitable for High Temperature Environment
Our advantages
Modern production science management
The company has advanced modern production equipment, scientific
and rigorous management methods, attention to detail and quality.
We have a high-quality team to provide customers with high quality,
cost-effective products.
Pre-sale design
Before the sale, we listened carefully to the needs of our
customers, reasonably selected products suitable for our customers,
and developed a series of excellent LED display solutions. Customer
satisfaction is our constant pursuit.
Fast after sales service
After the sale, we patiently answer the customer's questions,
receive timely and accurately feedback from customers, improve
product shortages, update product quality, solve customer concerns, and always adhere to a rigorous
and innovative scientific attitude.
Module Parameter
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |

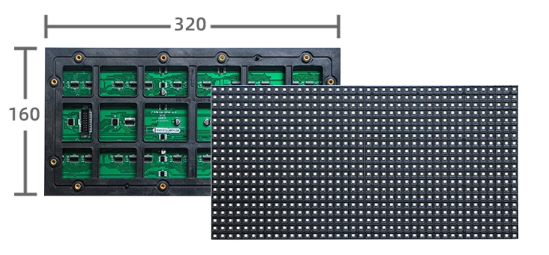

| Module size | 320x160mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x16dots |
| Module quantity per cabinet | 18pcs |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | Ironed steel cabinet |
| Cabinet weight | 35kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 10000 dots/m² |
| Brightness | ≥5500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 600W/m² |
| Avg.power consumption | 200 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥480frames/s |
| Refresh rate | ≥2000Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc. |
| Operating temperature | -10℃ ~ +50℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-95% no condensation |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless,
internet etc. |
Detailed picture
Certificates
Packing&shipping
Packing: wooden case, flight case for choose
shipping: by air, sea, train, DHL, you are the boss
FAQ
1. How can I place an order?
Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. For
designing or further discussion, it is better to contact us with
Skype/email /Whatsapp, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/
Advertising LED display for you to choose. The customized service
also could be provided
3. What about the lead time for an order?
Always: 7-17 days after receiving your payment, as your order
quantity, sometimes we have stock, can delivery within 7 days
4. What about the warranty?
We have 2~5 years of quality guaranteed, spare parts such as the
led module, receiving card, control card, power supply are damaged
not cause of artificial damaged, then it's free maintenance and
ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before
shipping, from purchase raw materials to ship, Each step has strict
quality control systems to ensure led display with good quality
6. Can you offer technical support? Since it's my first time....
We provide free training for our customer, teach the client how to
set up screens, make configuration of parameters, broadcast the
videos through Nova star and colorlight or Linsn control systems,
our engineer can directly teach you how to control, or help you to
do if you are really don't know how to control(Our Engineer can
text English, we can saving more time).
