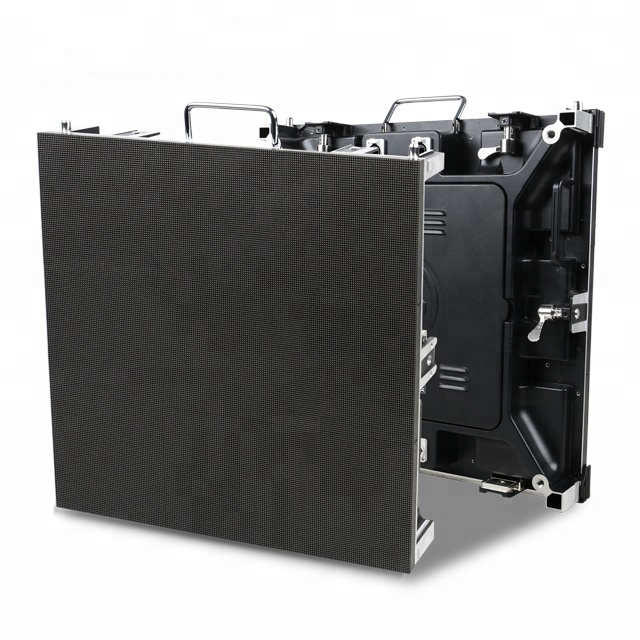

HD indoor P2.5mm SMD 3 in 1 LED display screen Led video wall panel
with 160000dots/sqm
We are the professional manufacturer of outdoor and indoor led
display. With more than 11 years experience, located in Shenzhen
city which is enjoyed the name of chinese silicon valley.over the
past years,our led products and service got many good comments for
our clients
Methods for Quality Assurance
a. Aging
1. 100% fully test
Condition: 72 hours with 1024 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering
Machine,Automatic Glue- pouring Machine, Solder Paste Printing
Machine,Re flow Soldering Machine, Automatic Solder Paste Printing
Machine,
Withstand Voltage Tester, Ground Resistance Tester,Medium-speed
Automatic SMT Machine, Super Mute Terminal Machine,Automatic Wire
Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
♦ Product specification
| | Specifictions |
| LED Lamps | Type | SMD2121(High Brightness LEDs) |
| LED Standard | Real Pixel(1R1G1B) |
| Red Wavelength | 625-630nm |
| Green Wavelength | 515-530nm |
| Blue Wavelength | 465-475nm |
| LED Module | Pixel Pitch | 2.5mm |
| Module Size | 160mx160m |
| Module Resolution | 64*64dots |
| LED Cabinet | Cabinet Size | 640mmX640mm |
| Cabinet Resolution | 256pixels *256pixels |
| Cabinets Material | Iron steel cabinet |
| LED Display | Pixel Density | 160000pixels/sq.m |
| Drive IC | MBI5024 |
| Power Supply | Series connection |
| Brightness | >2500cd/sqm |
| Display Color | 16.7million |
| Viewing Angle | 110°(Horizontal),50°(Vertical) |
| Best Viewing Distance | 1.5m~160m |
| Max Power Consumption | 600 w/sq.m |
| Average Power Consumption | | | 300 w/sq.m |
| Weight | 35Kgs/sq.m |
| Refresh Rate | 3000hz |
| Input Voltage | AC220V/50H or AC110V/60H |
| Output Voltage | DC5V,40A |
| Grey Scale Levels | 1024 |
| Display Colors | R(1024) x G(1024) x B(1024) |
| MTBF | 10,000 hours |
| Life-span | 100,000 hours |
| Protection Level | IP45 |
| Failure percentage of leds | | | less than 0.0003 |
| Working Temperature | -25℃~65℃ |
| Drive Mode | 1/32 scaning |
| Working Humidity | 10%~99% |
| Control System | Control method | Synchronization & Asynchronization |
| Control System | LINSN Control System (sender,receiver,HUB with 75
interface,software) |
| Software | LED Studio (LINSN) |
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc |
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista
|
| Product Name | HD indoor P2.5mm SMD 3 in 1 LED display screen Led video wall panel
with 160000dots/sqm |
| Service | Your inquiry will be reply within 12 hours. |
| Brand | SCX |
| Material | Stainless, aluminum ,steel, epoxide resin,PE |
| Item | Indoor P2.5,P3,P4,P5,P6,P7.62 OutdoorP6,P8,P10,P12,P16,P20 |
| Feature | High brightness, good resolution, working stable , easy
installation. |
| Grade | IP43-IP65 |
| Driving mode | constant driving current |
| Stock | Regular items of led display have stocks. |
| Color temperature | 6500-9500K |
| Packing Method | Flight case &Plywood case or Customized Packing |
| Power supply request | AC85-264V(50HZ-60HZ) |
| Payment Term | T/T, Western Union |
| Delivery Time | Within 7-30 days according to your required size & quantity. |
| Using Range | Shopping mall,bank,bus station, train station, center of downtown,
airport, school, factory, bus, taxi, and etc.
|
Payment and delivery
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection
before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and
professional production ensure
our led display’s competitiveness.
